Ypsilon Shelter

Ypsilon Shelter

Materials

  • Frame - powder coated steel

Dimensions

  • H: 2630mm
  • W: 4397mm
  • D: 2800mm

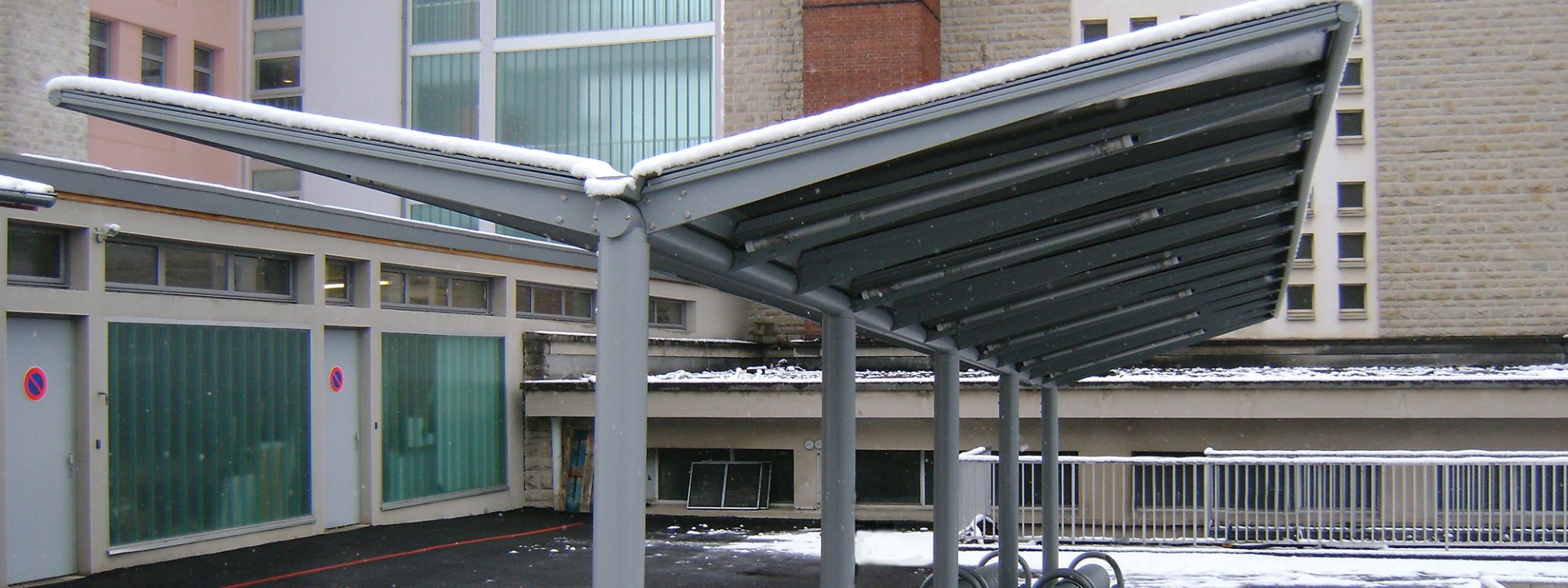

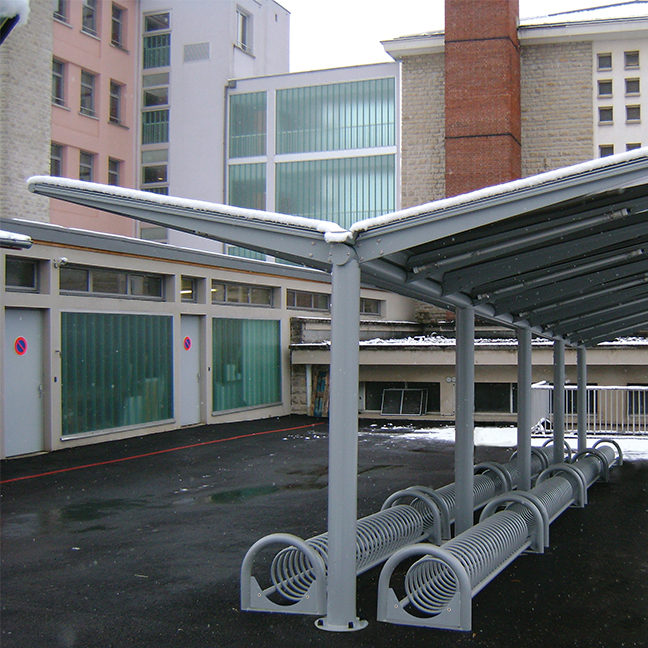

Ypsilon Shelter Details

The Ypsilon Shelter is a single or double-sided modular shelter consisting of steel tubular supports, steel hinged rails which are tilted to guide rainwater in the gutter canal and T-shaped tapered arms. The structures’ cover is in PCA alveolar panels. All metal elements are hot galvanised and painted with polyester powder. The Modular cover is constructed from three tube uprights with base plates. Base Plate with anchors for installation.
