Nort Shelter Details

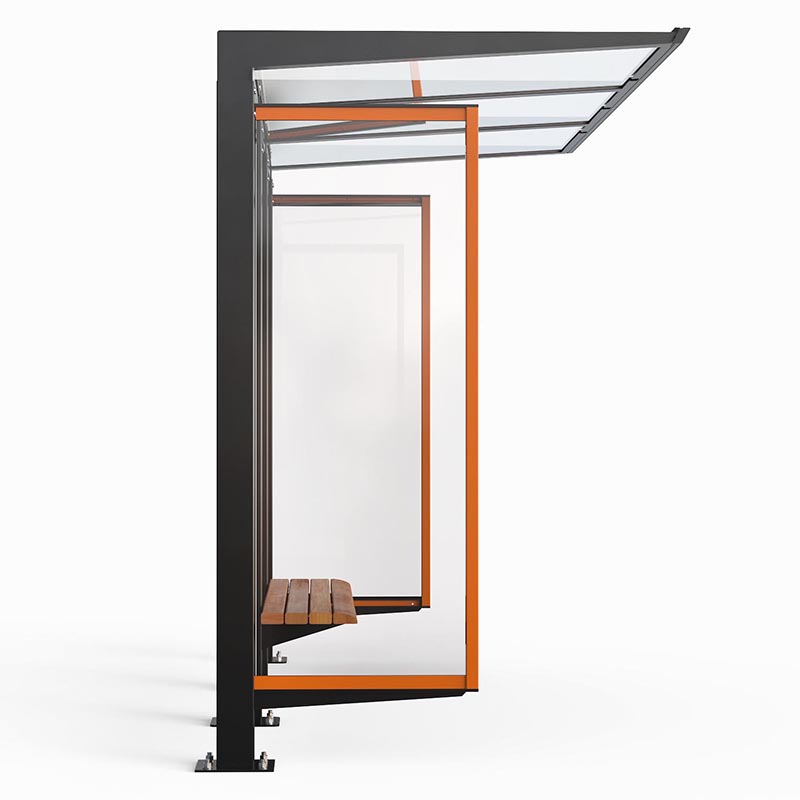

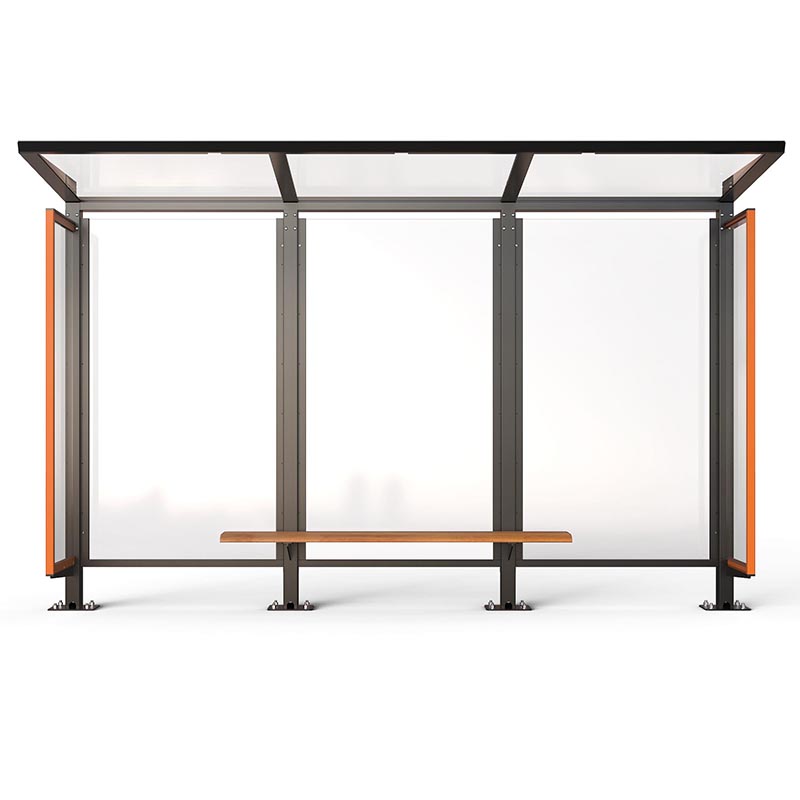

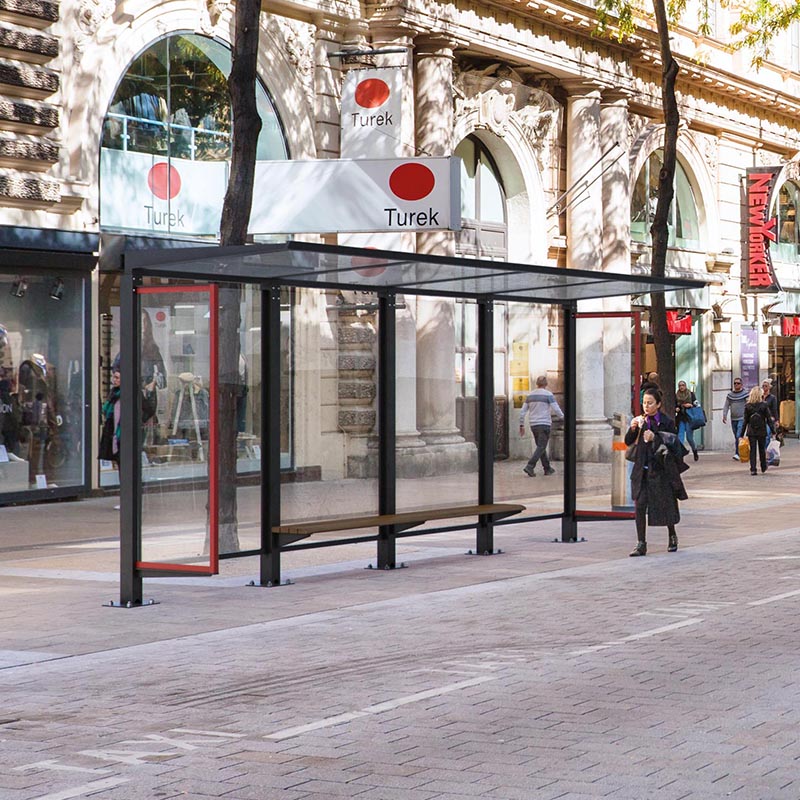

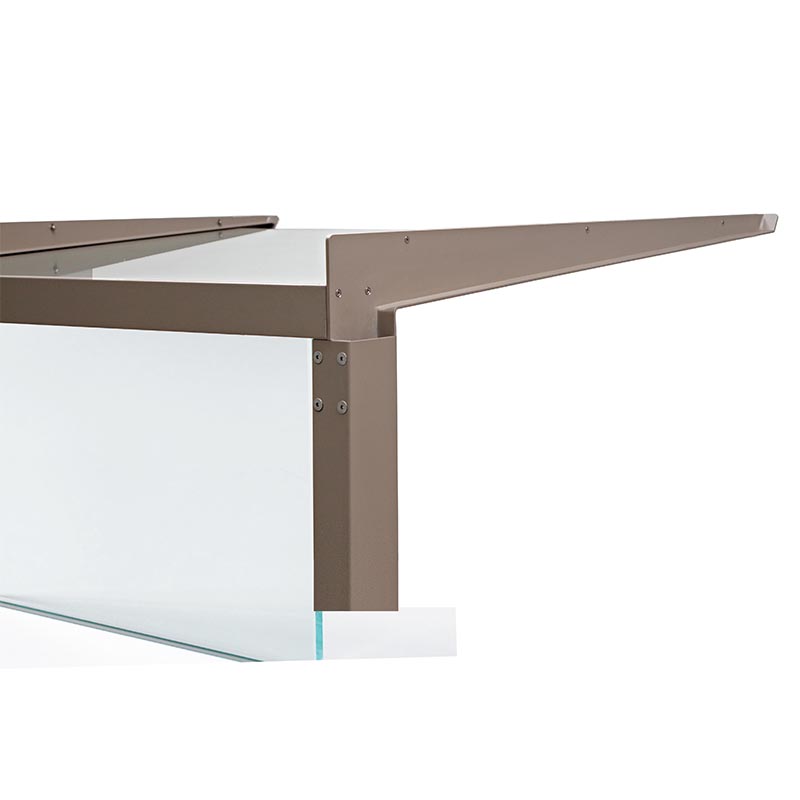

Modular shelter composed of load-bearing columns, a frame, both made of steel tube, and a back wall made of coupled glass sheets. The frame, equipped with a gutter to collect rainwater and convey it inside the columns, supports a roof in coupled and tempered glass sheets. The roof can accommodate a modular bench without backrest, with wooden seat, sustained by supports connected to the columns. It can be completed with glass side walls.

Materials

  • Powder coated steel

Dimensions

  • 2 Mod - L: 2480mm x D: 1588mm x H: 2378mm
  • 3 Mod - L: 3680mm x D: 1588mm x H: 2378mm
  • 4 Mod - L: 4880mm x D: 1588mm x H: 2378mm
